·SKU TSS-6MM-X-1-CORE-TUV-IEC-H1Z2Z2-K-CABLE-BLACK-250M-PER-ROLL

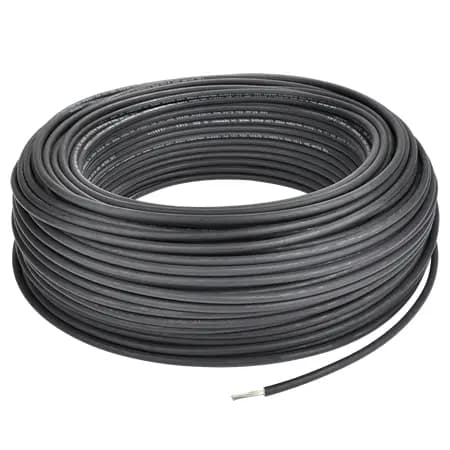

6mm x 1 core TUV IEC H1Z2Z2-K Solar Cable Black (250m Roll)
₦550,000
In stock at Victoria Island, ready for pickup
Single-core 6 mm² solar DC cable with tinned annealed copper conductor and double XLPE (E-beam cross-linked, halogen-free) insulation and jacket, rated 1.5 kV DC to TÜV EN50618 H1Z2Z2-K and IEC 62930. It is used to connect PV modules to each other and to inverters or charge controllers in string and off-grid systems. The UV-, ozone- and weather-resistant construction stays flexible in cold conditions and is rated for an expected service life of over 25 years.
- Conductor cross-section:1×6.0 mm²
- Conductor:Soft tinned annealed copper, IEC 60228 class 5
- Stranding (N/mm):84/0.28
- Insulation thickness:0.70 mm
- Jacket thickness:1.05 mm
- Outer diameter:6.5 ± 0.2 mm
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (3343 KB).
Specifications
- Conductor cross-section
- 1×6.0 mm²
- Conductor
- Soft tinned annealed copper, IEC 60228 class 5
- Stranding (N/mm)
- 84/0.28
- Insulation thickness
- 0.70 mm
- Jacket thickness
- 1.05 mm
- Outer diameter
- 6.5 ± 0.2 mm
- Max. conductor resistance
- 3.39 mΩ/m
- Ampacity
- 70 A
- Rated voltage
- Uo = 1.5 kV DC
- Test voltage
- 6.5 kV AC, 5 min
- Colour
- Black / Red (B/R)
- Insulation & jacket material
- XLPE, flame retardant, halogen free, E-beam cross-linked
- Operating temperature
- -40 °C ~ +120 °C
- Ambient temperature
- -40 °C ~ +90 °C
- Max. short-circuit temperature
- 250 °C
- Bending radius
- Fixed: >4 × ø; moving: >5 × ø
- Standards / approval
- TÜV EN50618, IEC 62930, EN 60332-1-2, EN 61034-1/-2, DIN 51900
- Expected service life
- over 25 years
