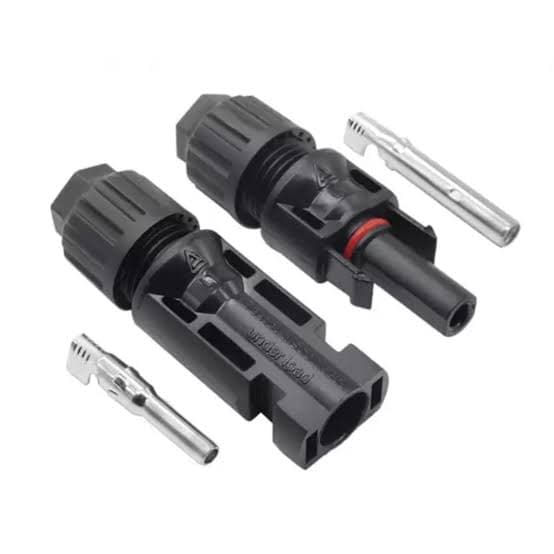

MC4 Solar Connector - Male and Female Complete
₦0
In stock at Victoria Island, ready for pickup
The MC4C is a matched male and female MC4-type solar cable connector pair for joining PV module and array DC cables. It suits 2.5, 4 and 6mm² solar cable and is rated at 1500 V DC and 30 amps, with an IP67 sealed, UV-resistant PPO housing for outdoor use. Crimping requires the RTMC4 tool, and the connectors carry TUV DIN IEC 62852 and VDE approvals.
- Type:MC4 Solar cable connector - male and female
- Cable Range:2.5, 4, 6mm²
- Rated Voltage:1500 V DC
- Max. Current:30 amps
- Ingress Protection:IP67
- Flame Retardant Grade / UV Resistant:UL94-V0
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
Specifications
- Type
- MC4 Solar cable connector - male and female
- Cable Range
- 2.5, 4, 6mm²
- Rated Voltage
- 1500 V DC
- Max. Current
- 30 amps
- Ingress Protection
- IP67
- Flame Retardant Grade / UV Resistant
- UL94-V0
- Operating Temperature Range
- -40 °C to +85 °C
- Material
- PPO
- Approvals
- TUV DIN IEC 62852 (Ed.1) & VDE 0126-3/2009-10
- Tool Required
- RTMC4
