Renon Power·SKU TSS-RENON-POWER-EBRICK-5-12-KWH-51-2-V-RA

Renon Power EBrick 5.12 kWh 51.2 V Battery

₦1,500,000

In stock at Victoria Island, ready for pickup

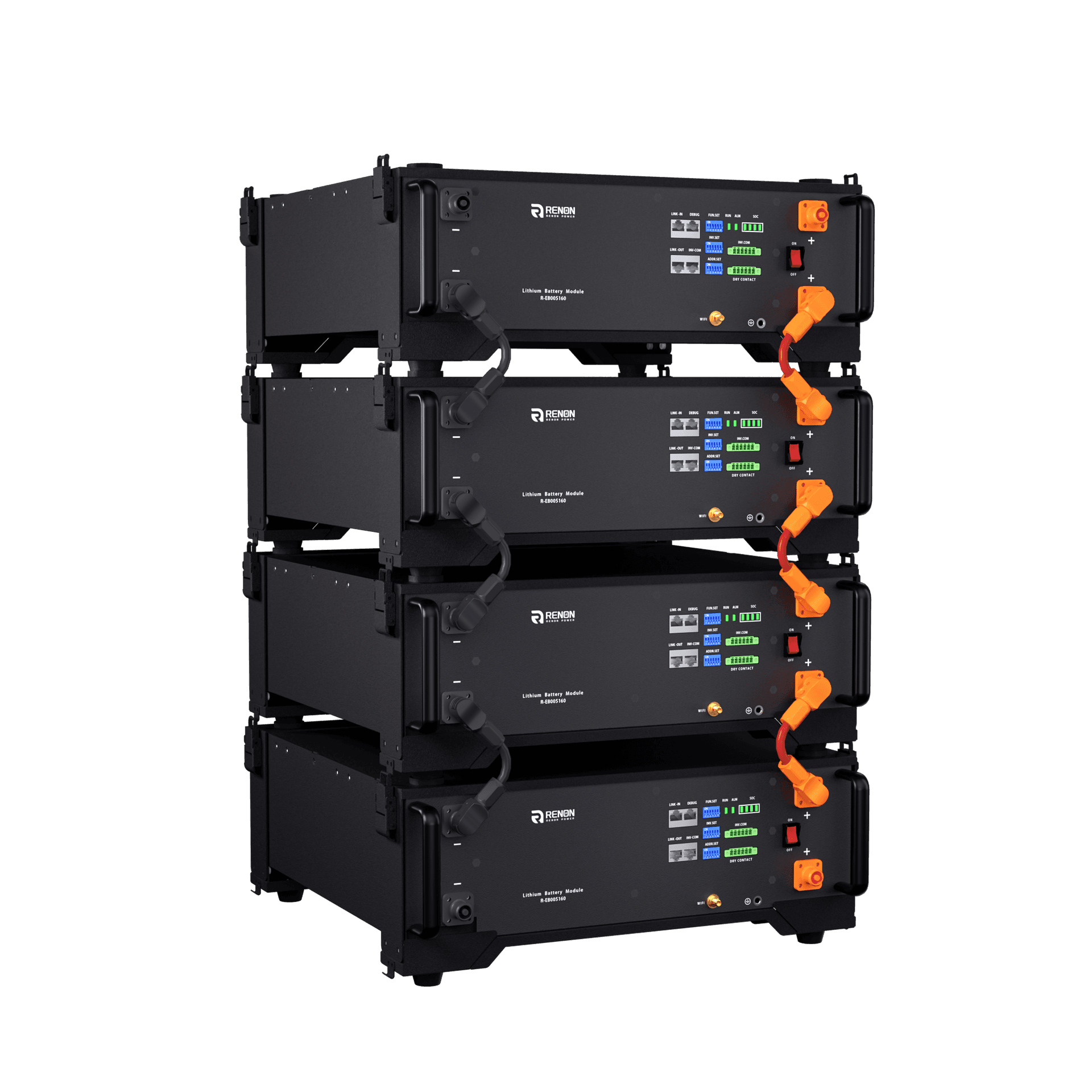

The Renon Power EBrick is a rack-mounted low-voltage LiFePO4 battery module with 5.12 kWh of usable nominal energy at 51.2 V and 4.8 kW of power, intended for indoor solar storage and backup systems. Its modular design lets installers parallel up to 31 systems for larger capacity, and built-in RS485, CAN and Wi-Fi communication allows remote monitoring through a dedicated app. It is rated for up to 8000 cycles and carries UL1973, UL9540A, IEC 62619 and UN 38.3 compliances.

Battery Chemistry:LiFePO4
Cell Capacity:100 Ah
Nominal Energy:5.12 kWh
Power:4.8 kW
Default Voltage:51.2 V
Voltage Range:43.2 ~ 59.2 V

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (905 KB).

Specifications

Battery Chemistry: LiFePO4
Cell Capacity: 100 Ah
Nominal Energy: 5.12 kWh
Power: 4.8 kW
Default Voltage: 51.2 V
Voltage Range: 43.2 ~ 59.2 V
Max. Operation Current: 95 A
Primary Overcurrent Protection: 98 A @10S
Secondary Overcurrent Protection: 120 A @30mS
Max. Charging Voltage: 58.4 V
Recommended Charging Voltage: 56.8 V
Discharge Cut-off Voltage: 43.2 V
Cycle Life: 8000 Cycles
Scalability: Max. 31 systems in parallel
Communication: RS485, CAN, WiFi
Operating Temperature: Charge: 0°C ~ 50°C / Discharge: -20°C ~ 50°C
Cooling: Natural Cooling
Max. Altitude: 2000 m / 6561 ft
Dimensions (W*D*H): 440*420*132 mm (17.3*16.5*5.2 in)
Net Weight: 45 kg (99.2 lb)
IP Rating: IP20
Installation: Rack Mounting, Indoor
Certifications: UL1973, UL9540A, IEC 62619, UN 38.3, CEI 0-21, UKCA, EN-61000, EN-62311
Warranty: 5 Years
