·SKU ASTRONERGY-CHINT-575W-MONO

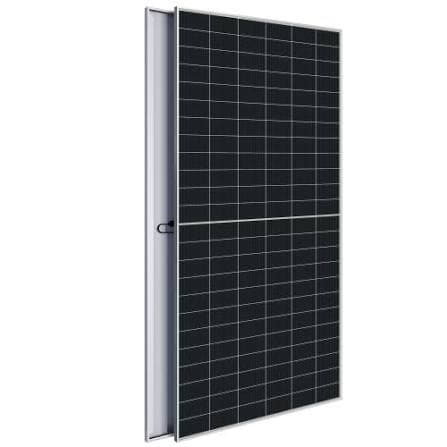

Astronergy CHINT 575W Mono

₦135,000

Not in stock right now. Pre-order and we confirm the lead time within one working day.

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (2698 KB).

Specifications

Rated output (Pmpp, STC): 575 W
Power range (series): 565~585 W
Power sorting tolerance: 0~+5 W
Module efficiency (575 W): 22.3%
Rated voltage (Vmpp): 43.82 V
Rated current (Impp): 13.12 A
Open circuit voltage (Voc): 52.15 V
Short circuit current (Isc): 13.89 A
Rated output at NMOT: 432.4 W
Cell type: n-type mono-crystalline, TOPCon, half-cut
No. of cells: 144 (6*24)
Dimensions (L x W x H): 2278 x 1134 x 30 mm
Module weight: 32.1 kg
Front / Back glass: 2.0+2.0 mm
Frame: Aluminum, silver anodized
Connector type (IEC/UL): HCB40 (Standard) / MC4-EVO2A (Optional)
Cable diameter (IEC/UL): 4 mm² / 12 AWG
Cable length: Portrait: (+)350 mm, (-)250 mm; customized length
Max. system voltage (IEC/UL): 1500 VDC
Max. series fuse rating: 25 A
Junction box IP rating / diodes: IP 68 / 3 diodes
Max. mechanical test load: 5400 Pa (front) / 2400 Pa (back)
Temperature coefficient (Pmpp): -0.29%/℃
Temperature coefficient (Voc): -0.25%/℃
Temperature coefficient (Isc): +0.043%/℃
NMOT: 41±2℃
Warranty: 15-year product warranty, 30-year linear power warranty
Power degradation: ≤1.0% first year, ≤0.4% per year (year 2-30)
Packing unit: 36 pcs / box; 720 pcs per 40' HQ container
Certifications / management systems: ISO 9001:2015, ISO 14001:2015, ISO 45001; CE, cULus listed, CGC, TÜV
