JinkoSolar·SKU TSS-JINKOSOLAR-TIGER-NEO-N-TYPE-JKM600N-66HL4M-BDV-6

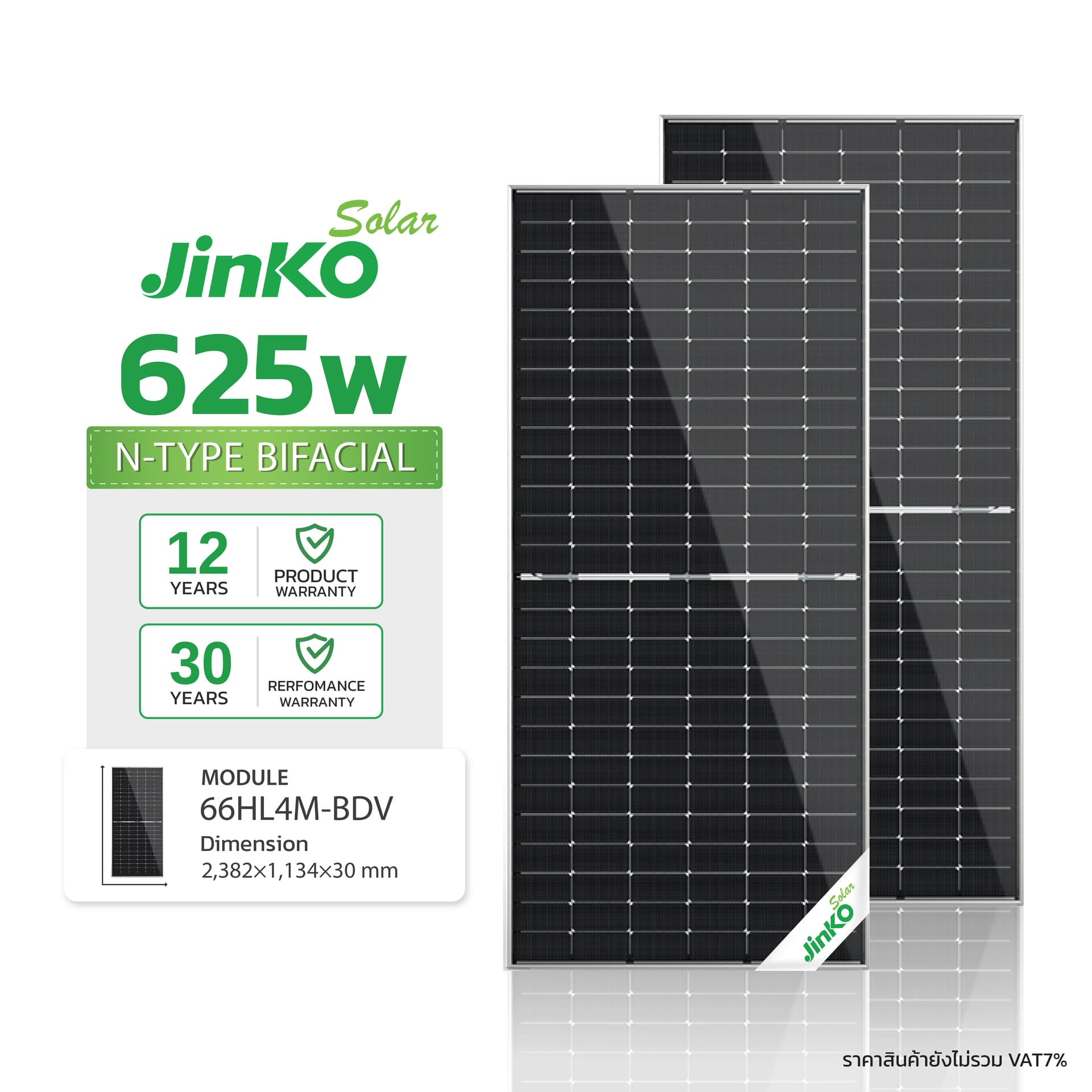

JinkoSolar 625W Tiger Neo Bifacial Solar Module

₦150,000

In stock at Victoria Island, ready for pickup

A 625 Wp bifacial dual-glass photovoltaic module from JinkoSolar's Tiger Neo N-type series, built with 132 (2x66) N-type mono-crystalline half-cells and SMBB technology. The dual 2.0 mm glass construction with anodized aluminium frame is rated for 2400 Pa wind and 5400 Pa snow loads and carries an IP68 junction box, making it suitable for rooftop and ground-mount installations. Bifacial gain (80±5% bifacial factor), low temperature coefficient of -0.29%/°C and a 30-year linear power warranty give it strong long-term yield per installed watt.

Maximum Power (Pmax) at STC:600 Wp
Maximum Power Voltage (Vmp):40.16 V
Maximum Power Current (Imp):14.94 A
Open-circuit Voltage (Voc):48.28 V
Short-circuit Current (Isc):15.84 A
Module Efficiency (STC):22.21%

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (3872 KB).

Specifications

Maximum Power (Pmax) at STC: 600 Wp
Maximum Power Voltage (Vmp): 40.16 V
Maximum Power Current (Imp): 14.94 A
Open-circuit Voltage (Voc): 48.28 V
Short-circuit Current (Isc): 15.84 A
Module Efficiency (STC): 22.21%
Power at NOCT: 453 Wp
Power Tolerance: 0~+3%
Cell Type: N-type Mono-crystalline, 132 cells (2x66)
Dimensions: 2382 x 1134 x 30 mm (93.78 x 44.65 x 1.18 inch)
Weight: 32.4 kg (71.43 lbs)
Front / Back Glass: 2.0 mm anti-reflection coated / 2.0 mm heat strengthened
Frame: Anodized aluminium alloy
Junction Box: IP68 rated
Output Cables: TUV 1x4.0 mm², (+): 400 mm, (-): 200 mm or customized length
Maximum System Voltage: 1500 VDC (IEC)
Maximum Series Fuse Rating: 35 A
Operating Temperature: -40°C ~ +85°C
Temperature Coefficient of Pmax: -0.29%/°C
Temperature Coefficient of Voc: -0.25%/°C
Temperature Coefficient of Isc: 0.045%/°C
NOCT: 45±2°C
Bifacial Factor: 80±5%
Mechanical Load: Wind 2400 Pa / Snow 5400 Pa
Warranty: 12-year product warranty, 30-year linear power warranty (0.40% annual degradation)
Certifications: IEC61215(2016), IEC61730(2016), CE, ISO9001:2015, ISO14001:2015, ISO45001:2018
Packaging: 36 pcs/pallet, 72 pcs/stack, 720 pcs per 40' HQ container
