Jinko Solar·SKU TSS-JINKO-SOLAR-B51100-5-12-KWH-BATTERY

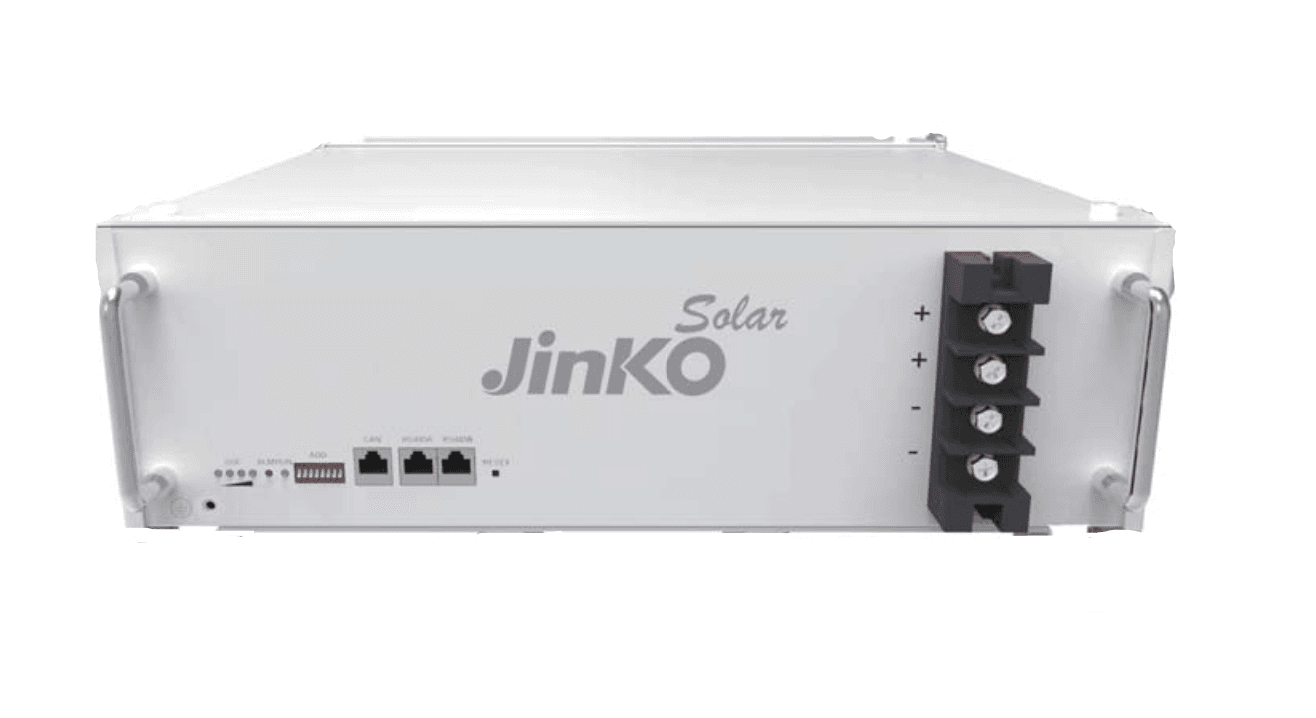

Jinko Solar JKS-51100 5.12kWh 51.2V Lithium Ion Battery

₦1,170,100

In stock at Victoria Island, ready for pickup

The Jinko Solar JKS-B51100-II is a 5.12kWh lithium iron phosphate (LFP) battery module with a nominal voltage of 51.2V, designed for low-voltage residential solar storage and backup systems. It uses plug-and-play connectors and can be stacked and paralleled up to 16 units for larger capacity. RS485 and CAN communication allow it to work with compatible hybrid inverters, and it is rated for 5000 cycles with a 5-year warranty.

Cell Technology:Lithium Iron Phosphate
Nominal Capacity:5.12kWh
Nominal Voltage:51.2V
Battery Connection Type:Cable Lug
Depth of Charge:80%
Usable Capacity:4.1kWh

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (287 KB).

Specifications

Cell Technology: Lithium Iron Phosphate
Nominal Capacity: 5.12kWh
Nominal Voltage: 51.2V
Battery Connection Type: Cable Lug
Depth of Charge: 80%
Usable Capacity: 4.1kWh
Charge Voltage: 56.4V
Discharge Voltage: 48V
Max Parallel Quantity: 16
Life Cycles: 5000 Cycles (0.5C, 25℃, 80%DOD, 70%EOL)
Charge/Discharge Current: Recommend 50A (0.5C), Max 100 (1C)
Communication Port: RS485 & CAN
Weight: 41kg
Dimensions (W*H*D): 442*133*440 mm (±2mm)
Operating Temperature: Charge: -5℃~+45℃ / Discharge: -20℃~+50℃
Recommended Operating Temperature: Charge: +15℃~+35℃ / Discharge: +15℃~+35℃ / Storage: -20℃~+35℃
Humidity: 5%-95%
Altitude: ≤4000m
Certificate: IEC 62619 / CE-EMC / UN38.3
Warranty: 5 years
