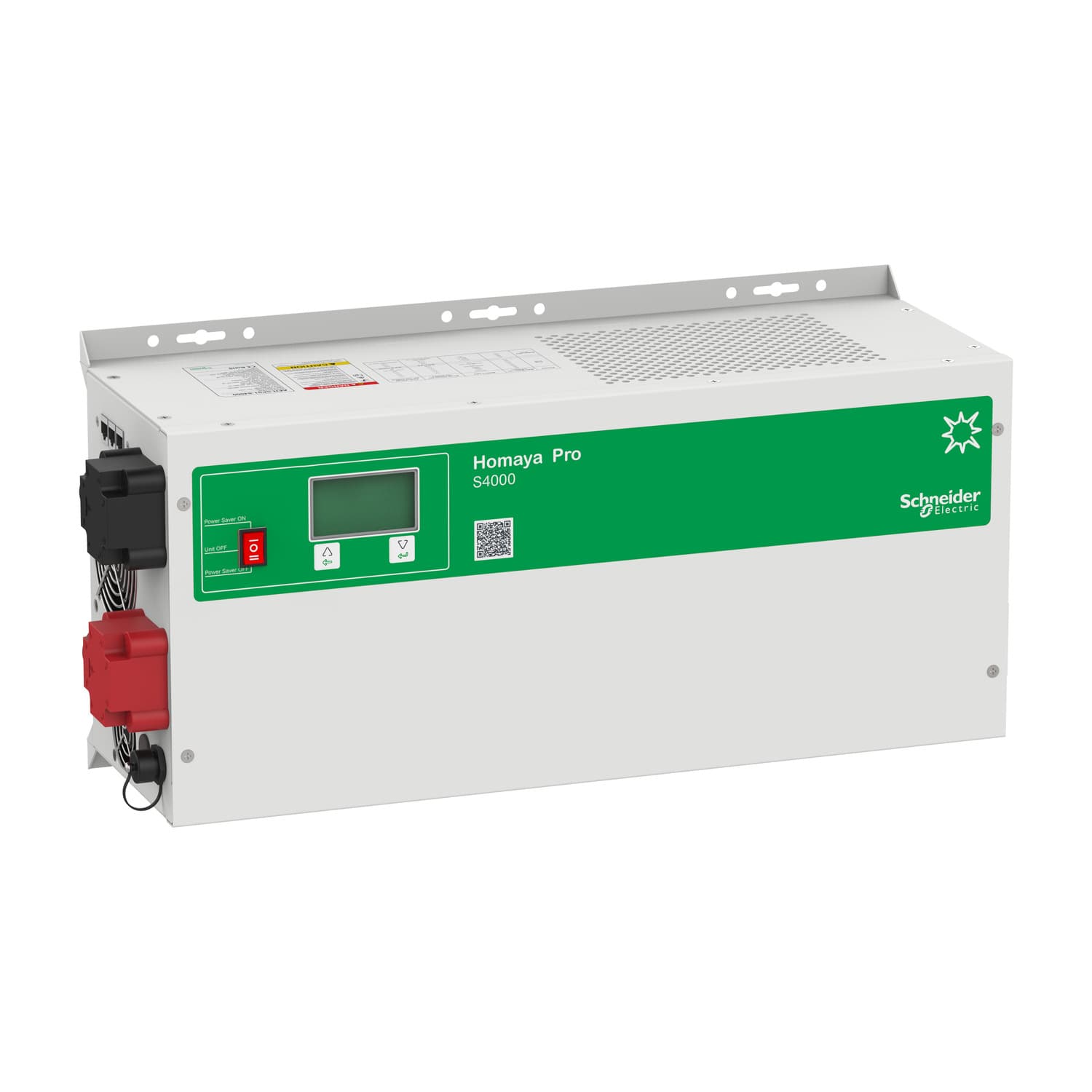

Schneider Homaya Pro 4kW 48V Solar Hybrid Inverter (AEH-SP01-S4000)

Specifications

Output power (continuous) up to

40°C 4000 W / 4000 VA 6000 W / 6000 VA

Output current (continuous) at

40 °C 17.4 A 26.1 A

Output voltage L-N

230 V +/- 10% L-N: 230 V +/- 10%

Input DC voltage range

40 V to 64 V (48 V nominal) 40 V to 64 V (48 V nominal)

Maximum input DC current

125 A 188 A

Maximum output charge current

60 A 60 A

Maximum output power

3000 W 3000 W

Output charge voltage range

40 V – 62.8 V (48 V nominal) 40 V – 62.8 V (48 V nominal)

PV input voltage range (Vmp/Voc)

80 V to 250 V DC 80 V to 250 V DC

PV maximum voltage

300 V DC 300 V DC

PV Input maximum power (Wp)

3200 W 3200 W

AC (grid) input current max

40 A 40 A

AC input voltage range L-N

165 V - 265 V L-N: 165 V - 265 V

Frequency

50 Hz/ 60 Hz (Auto detection) 50Hz/ 60Hz (Auto detection)

Product weight / Shipping weight

28 kg / 29.6 kg 31 kg / 33 kg

Shutdown output after 30 Sec to 60 Sec

125% - 150%

Shutdown output after 10 Sec to 20 Sec

>150%
