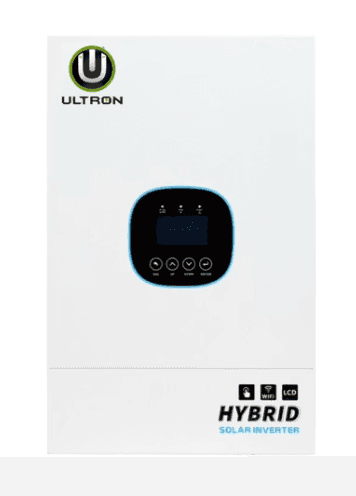

Ultron 6.2kW 48V Hybrid Solar Inverter
₦700,000
In stock at Victoria Island, ready for pickup
The Ultron 6.2KW 48V hybrid solar inverter is a pure sine wave inverter, battery charger, AC auto-transfer switch and MPPT solar charge controller in one unit. It runs 230Vac loads from solar, grid or generator and charges 48V lead-acid (Sealed, AGM, Gel, Flooded) or LiFePO4/lithium batteries with a 120A MPPT controller of up to 99% tracking efficiency. Up to 6 units can be paralleled, including three-phase configurations, and charging and output priority can be set to Solar First, Only Solar, Hybrid Charging, Utility First or SBU.
- Rated Power:6.2KW
- Output Waveform:Pure Sine Wave
- Output Voltage:230Vac ±5%
- Output Frequency:60Hz or 50Hz
- Nominal Input Voltage:230Vac
- Max. AC Input Voltage:300Vac
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (1718 KB).
Specifications
- Rated Power
- 6.2KW
- Output Waveform
- Pure Sine Wave
- Output Voltage
- 230Vac ±5%
- Output Frequency
- 60Hz or 50Hz
- Nominal Input Voltage
- 230Vac
- Max. AC Input Voltage
- 300Vac
- Max. AC Input Current
- 30A
- Nominal Input Frequency
- 50Hz / 60Hz (Auto detection)
- Battery Voltage
- 48V
- Efficiency (Line Mode)
- >95%
- Peak Efficiency
- 93%
- Surge Capacity
- 2*rated power for 5 seconds
- Max. PV Array Power
- 7000W
- Max. PV Array Open Circuit Voltage
- 500Vdc
- PV Array MPPT Voltage Range
- 90Vdc~450Vdc
- PV Start-up Voltage
- 120Vdc +/-5Vdc
- Maximum Solar Charging Current (MPPT)
- 120A
- Utility Charging Current (UPS)
- 80A
- Bulk Charging Voltage
- 58.4Vdc (Flooded) / 56.4Vdc (AGM, Gel)
- Floating Charging Voltage
- 54Vdc
- Overcharge Protection
- 60Vdc
- Charging Algorithm
- 3-Step
- Max. Parallel Units
- 6
- Parallel Communication
- CAN
- Transfer Time in Parallel Mode
- Max 50ms
- Storage Temperature
- -15°C~60°C
- Humidity
- 5% to 95% Relative Humidity (Non-condensing)
- Product Size (D*W*H)
- 520mm*320mm*115mm
- Packing Size (D*W*H)
- 582mm*400mm*217mm
- Net Weight
- 11.2KG
- Gross Weight
- 13.8KG
- Safety Certification
- CE
