Phocos·SKU TSS-PHOCOS-ANY-BRIDGE-GATEWAY

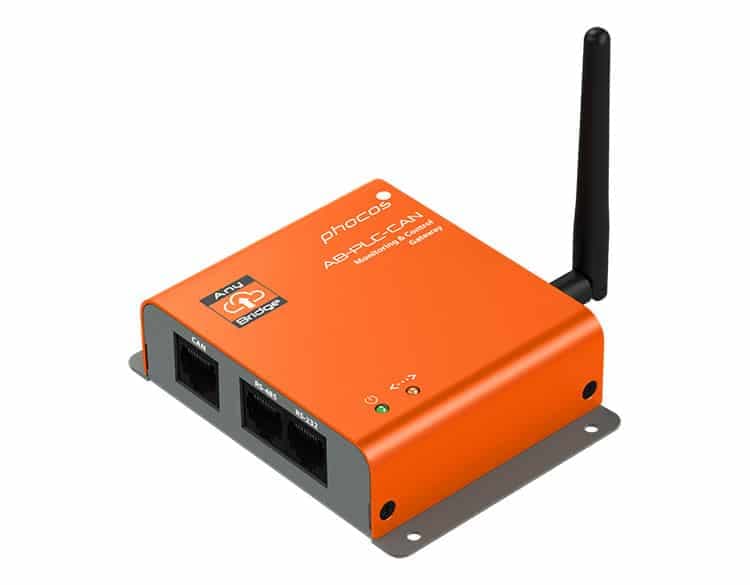

Phocos Any-Bridge Remote Monitoring & Control Gateway

₦356,400

In stock at Victoria Island, ready for pickup

The Phocos Any-Bridge AB-PLC-CAN is a monitoring and control gateway that connects Any-Grid PSW-H inverter/chargers to the PhocosLink Cloud portal. It links to an internet router over Wi-Fi or Ethernet LAN and gives remote access to system status, operation mode, faults and historical or real-time PV, AC source, battery, load and inverter/charger data. Up to 9 Any-Grid PSW-H units can be connected, it needs no external power supply, and an external antenna extends wireless range.

Type:Any-Bridge
Wired interfaces:RS-232, RS-485, CAN bus, solid-state relay driver (≤ 12 mA, approx. 5 Vdc)
Ethernet:Ethernet LAN port
Wi-Fi standards:802.11b/g/n, 2.4 Ghz
Wi-Fi range:Approx. 46 m / 150 feet indoors (varies with building materials and antenna orientation)
BLE standard:V4.2

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (254 KB).

Specifications

Type: Any-Bridge
Wired interfaces: RS-232, RS-485, CAN bus, solid-state relay driver (≤ 12 mA, approx. 5 Vdc)
Ethernet: Ethernet LAN port
Wi-Fi standards: 802.11b/g/n, 2.4 Ghz
Wi-Fi range: Approx. 46 m / 150 feet indoors (varies with building materials and antenna orientation)
BLE standard: V4.2
BLE range: Approx. 10 m, line-of-sight
Compatibility: All Any-Grid PSW-H inverter/chargers
Max. units connected: Up to 9 units of Any-Grid PSW-H
Power supply: No external power supply required
Antenna: External antenna for extended wireless range
Dimensions (WxHxD): 77 x 105 x 28.2 mm / 3 x 4.1 x 1.1 in
Weight: 235 g / 0.52 lbs
Certifications: CE compliant
Cloud service: Free introductory access to PhocosLink Cloud, limited to 24 months from account creation
Apps: PhocosLink Mobile app (Google Play, App Store)
