Phocos·SKU TSS-PHOCOS-FR230B-SERIES-DC

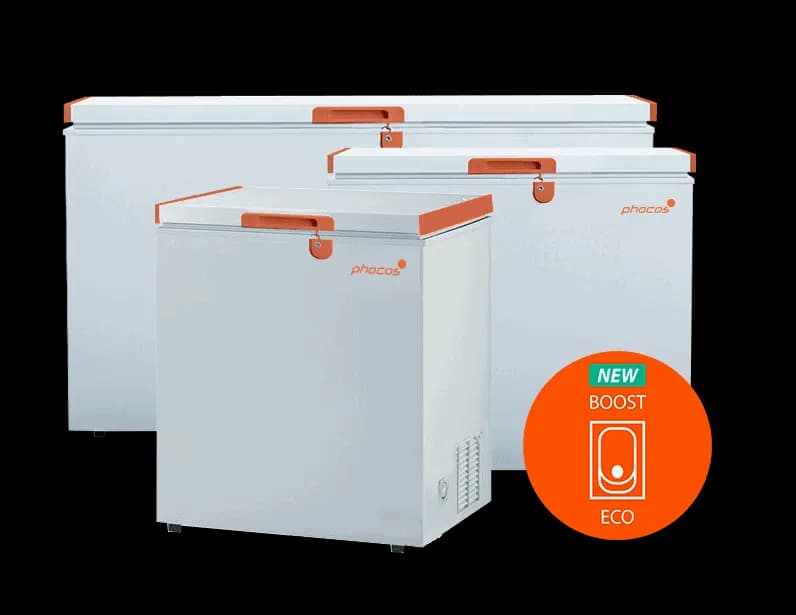

Phocos FR-230B Series DC Chest Refrigerator/Freezer

₦1,235,000

In stock at Victoria Island, ready for pickup

The Phocos FR230-B is a 238 litre DC chest appliance that runs directly from a 12 V or 24 V battery bank without an inverter, and works as either a refrigerator or a freezer depending on the thermostat setting. It uses a maintenance-free brushless DC compressor, environmentally friendly R600a refrigerant and an aluminium inner lining with drain plug for easy cleaning. A BOOST switch lets the user trade efficiency for faster cooling, and the unit is internally protected against low voltage and reverse polarity.

System Voltage (Nominal):12 / 24 V auto recognition
Content (Net Capacity):238 L / 8.4 cu. ft
Internal Operating Temperature Range:-18 to +8 °C / -0.4 to +46.4 °F
Energy Consumption at 21 °C / 70 °F ambient (Default ECO Mode):178 Wh/day (Fridge: 4 °C / 38 °F); 609 Wh/day (Freezer: -18 °C / 0 °F)
Energy Consumption at 32 °C / 90 °F ambient (Default ECO Mode):193 Wh/day (Fridge: 4 °C / 38 °F); 899 Wh/day (Freezer: -18 °C / 0 °F)
Ambient Temperature:+10 to +43 °C / +50 to +104 °F

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (99 KB).

Specifications

System Voltage (Nominal): 12 / 24 V auto recognition
Content (Net Capacity): 238 L / 8.4 cu. ft
Internal Operating Temperature Range: -18 to +8 °C / -0.4 to +46.4 °F
Energy Consumption at 21 °C / 70 °F ambient (Default ECO Mode): 178 Wh/day (Fridge: 4 °C / 38 °F); 609 Wh/day (Freezer: -18 °C / 0 °F)
Energy Consumption at 32 °C / 90 °F ambient (Default ECO Mode): 193 Wh/day (Fridge: 4 °C / 38 °F); 899 Wh/day (Freezer: -18 °C / 0 °F)
Ambient Temperature: +10 to +43 °C / +50 to +104 °F
Refrigerant: Environmentally-Friendly R600a
Door Type: Top-Opening with integrated handle and lock
Storage Baskets: 2 Baskets
Boost Switch: Standard - accelerates cooling when activated
Cabinet Dimensions (WxHxD): 1035 x 850 x 750 mm / 40.8 x 33.5 x 29.5 in
Inner Dimensions (WxHxD): 628 x 856 x 496 mm / 24.7 x 33.7 x 19.5 in (excludes compressor recess of 250 x 230 x 496 mm / 9.8 x 9.1 x 19.5 in)
Weight: 80 kg / 160 lbs
Compressor: Maintenance-free brushless DC compressor
Protection: Internal low voltage and reverse polarity protection
Container Loading (20' / 40' GP / 40' HC): 30 pcs. / 60 pcs. / 98 pcs.
Warranty: 2 years
