Astronergy·SKU TSS-ASTRONERGY-CHINT-575W-BIFACIAL-SOLAR-MODULE

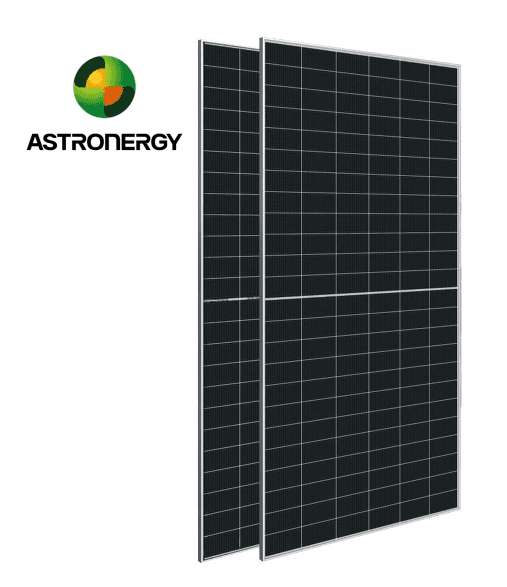

Astronergy CHINT 575W Bifacial Solar Module

₦145,000

In stock at Victoria Island, ready for pickup

The Astronergy ASTRO N5 CHSM72N(DG)/F-BH is a 575 W bifacial double-glass solar module built with 144 half-cut n-type TOPCon mono-crystalline cells. Its glass-glass construction and rear-side energy gain make it suitable for ground-mount, commercial rooftop and carport installations where extra yield per square metre is wanted. It offers a low Pmpp temperature coefficient, PID resistance, a 1500 VDC system voltage rating and a 15-year product / 30-year linear power warranty.

Rated output (Pmpp, STC):575 Wp
Power range (series):570~595 W
Power sorting tolerance:0~+3%
Module efficiency:22.3% (max. in series 23.0%)
Rated voltage (Vmpp):42.94 V
Rated current (Impp):13.39 A

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (1155 KB).

Specifications

Rated output (Pmpp, STC): 575 Wp
Power range (series): 570~595 W
Power sorting tolerance: 0~+3%
Module efficiency: 22.3% (max. in series 23.0%)
Rated voltage (Vmpp): 42.94 V
Rated current (Impp): 13.39 A
Open circuit voltage (Voc): 51.10 V
Short circuit current (Isc): 14.19 A
Rated output at NMOT: 432.4 Wp
Cell type: n-type mono-crystalline (TOPCon), 144 cells (6*24), half-cut
Dimensions (L x W x H): 2278 x 1134 x 30 mm
Weight: 32.1 kg
Front / back glass: 2.0+2.0 mm double glass
Frame: Aluminum, silver anodized
Max. system voltage (IEC/UL): 1500 VDC
Max. series fuse rating: 30 A
Junction box IP rating: IP 68 (3 diodes)
Max. mechanical test load: 5400 Pa (front) / 2400 Pa (back)
Temperature coefficient (Pmpp): -0.29%/℃
NMOT: 41±2℃
Connector type (IEC/UL): HCB40 (Standard) / MC4-EVO2A (Optional)
Warranty: 15-year product warranty, 30-year linear power warranty (87.40% at year 30)
Certifications / management systems: CE, UL Listed, TÜV, CQC; ISO 9001:2015, ISO 14001:2015, ISO 45001
Packing: 36 pcs / box; 720 pcs per 40' HQ container
