JA Solar·SKU TSS-JA-SOLAR-JAM66D45-625-LB-BLACK-FRAME-N-TYPE-BIFACIAL-SOLAR-MODULE

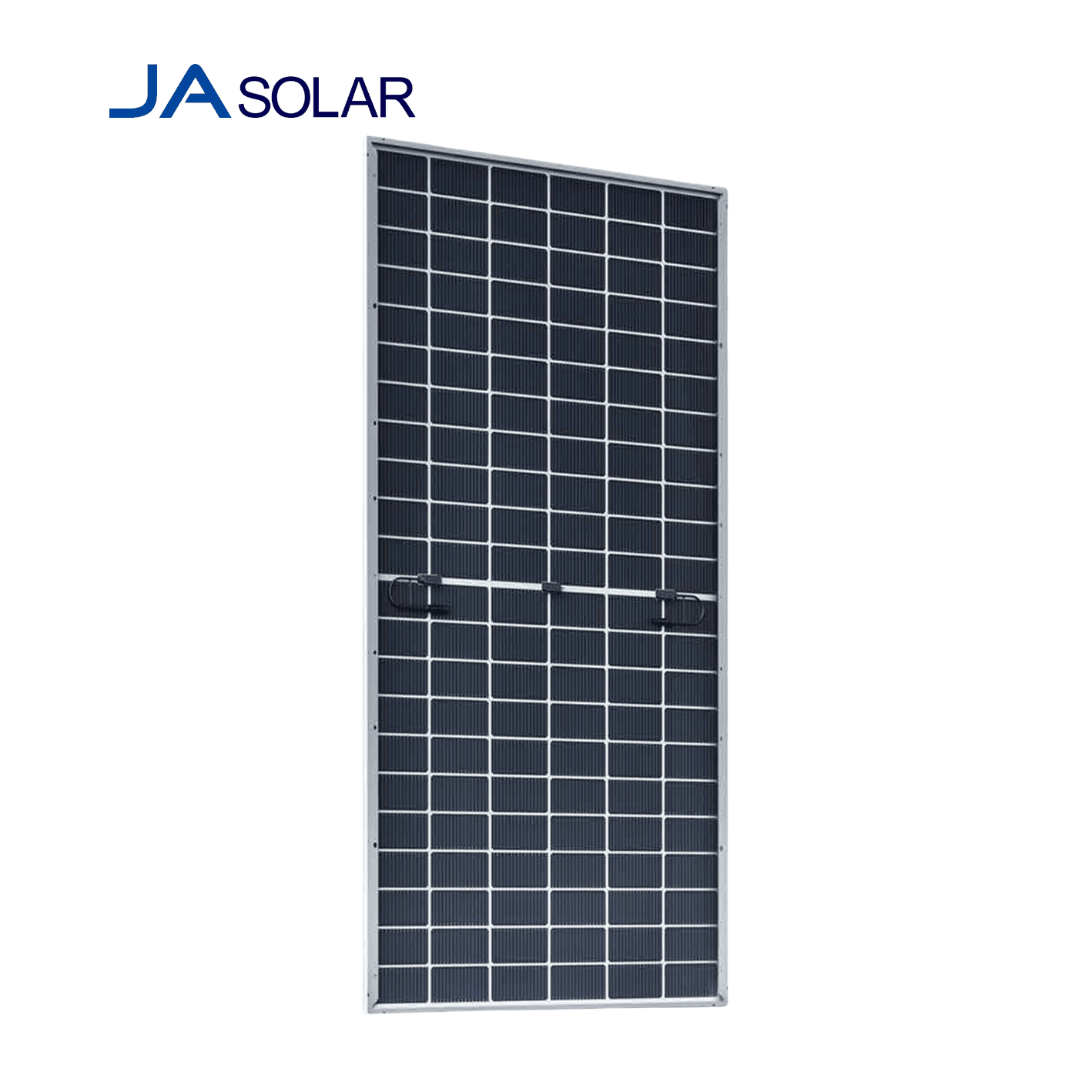

JA Solar 625W Black Frame N-type Bifacial Solar Module

₦150,000

In stock at Victoria Island, ready for pickup

The JA Solar JAM66D45 625/LB is a 625 W n-type bifacial double glass photovoltaic module with 132 half-cut MBB cells and a black frame, part of the Deep Blue 4.0 Pro series. It is designed for rooftop, commercial and utility-scale installations where high energy yield per square metre and extra rear-side generation are needed. Key strengths are a module efficiency of 23.1%, low degradation (1% in the first year, 0.4% per year thereafter) and a 30-year linear power output warranty.

Rated Maximum Power (Pmax):625 W
Open Circuit Voltage (Voc):48.70 V
Maximum Power Voltage (Vmp):40.45 V
Short Circuit Current (Isc):16.15 A
Maximum Power Current (Imp):15.45 A
Module Efficiency:23.1 %

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (1259 KB).

Specifications

Rated Maximum Power (Pmax): 625 W
Open Circuit Voltage (Voc): 48.70 V
Maximum Power Voltage (Vmp): 40.45 V
Short Circuit Current (Isc): 16.15 A
Maximum Power Current (Imp): 15.45 A
Module Efficiency: 23.1 %
Power Tolerance: 0~+3%
Cell Type: Mono n-type, 132 (6×22) half-cells, 16BB
Rated Power at 10% Rear Irradiation Ratio: 675 W (Voc 48.70 V, Isc 17.44 A)
Bifaciality: 80% ± 10%
Dimensions: 2382±2mm × 1134±2mm × 30±1mm
Weight: 33.1 kg
Front Glass / Back Glass: 2.0 mm / 2.0 mm
Junction Box: IP68, 3 diodes
Connector: QC 4.10-351 / MC4-EVO2A
Maximum System Voltage: 1500 V DC
Maximum Series Fuse Rating: 35 A
Operating Temperature: -40°C~+85°C
Maximum Static Load (Front / Back): 5400 Pa (112 lb/ft²) / 2400 Pa (50 lb/ft²)
Temperature Coefficient of Pmax: -0.290%/°C
NOCT: 45±2°C
Warranty: 12-year product warranty, 30-year linear power output warranty
Certificates: IEC 61215, IEC 61730, UL 61215, UL 61730; ISO 9001:2015; ISO 14001:2015; ISO 45001:2018; IEC 62941:2019
Safety Class / Fire Performance: Class II / UL Type 29, Class C
Packaging: 36 pcs/pallet, 720 pcs/40HQ container
