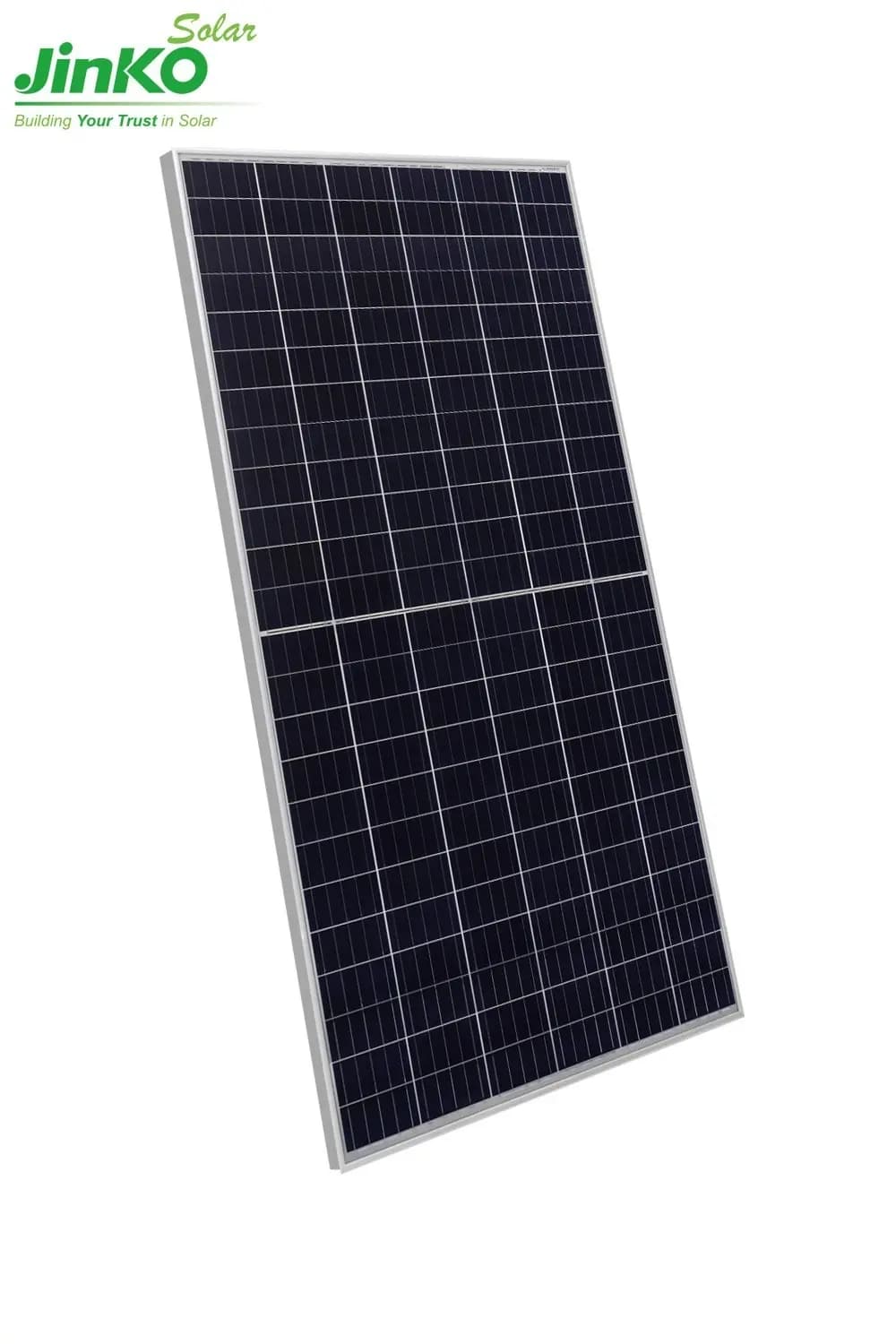

Jinko Solar Eagle 535W Bifacial Solar Module
₦125,000
Also sold in bulk
- Full Pallet (27 Pieces) · 27 units for ₦3,000,000 (₦111,111.11 each, save 11%)
In stock at Victoria Island, ready for pickup
The JKM535M-72HL4-TV is a 535 Wp bifacial photovoltaic module from JinkoSolar's Eagle 72HM G5b series, built with 144 (2x72) P-type mono-crystalline half-cut cells and a transparent backsheet that lets the rear side add extra yield. It is intended for grid-tied residential, commercial and utility-scale arrays on 1500 V systems. Key strengths are 20.75% front-side efficiency, a bifacial factor of 70±5%, Fire Type 1 rating with 3.2 mm tempered front glass, and a 30-year linear performance warranty.
- Maximum Power (Pmax) at STC:535 Wp
- Module Efficiency (STC):20.75%
- Maximum Power Voltage (Vmp):40.81 V
- Maximum Power Current (Imp):13.11 A
- Open-circuit Voltage (Voc):49.42 V
- Short-circuit Current (Isc):13.79 A
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (2542 KB).
Specifications
- Maximum Power (Pmax) at STC
- 535 Wp
- Module Efficiency (STC)
- 20.75%
- Maximum Power Voltage (Vmp)
- 40.81 V
- Maximum Power Current (Imp)
- 13.11 A
- Open-circuit Voltage (Voc)
- 49.42 V
- Short-circuit Current (Isc)
- 13.79 A
- Power at NOCT
- 398 Wp
- Power Tolerance
- 0~+3%
- Cell Type / Count
- P type Mono-crystalline, 144 half cells (2x72)
- Bifacial Factor
- 70±5%
- Rear-side Power Gain
- 562 Wp @ 5%, 615 Wp @ 15%, 669 Wp @ 25%
- Dimensions
- 2274×1134×40 mm (89.53×44.65×1.57 in)
- Weight
- 29.4 kg (64.82 lbs)
- Front Glass
- 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame
- Anodized aluminum alloy
- Junction Box
- IP68 rated
- Output Cables
- 12 AWG, 1400 mm (55.12 in) or customized length
- Maximum System Voltage
- 1500 VDC (UL and IEC)
- Maximum Series Fuse Rating
- 30 A
- Operating Temperature
- -40°C ~ +85°C
- Temperature Coefficient of Pmax
- -0.35%/°C
- Temperature Coefficient of Voc
- -0.28%/°C
- Temperature Coefficient of Isc
- 0.048%/°C
- NOCT
- 45±2°C
- Mechanical Load
- 5400 Pa (snow) & 2400 Pa (wind)
- Hailstone Test
- 55 mm hailstones at 34 m/s
- Fire Type
- Type 1
- Performance Warranty
- 30-year linear performance warranty (98% year 1, 84.95% year 30)
- Certifications
- IEC61215, IEC61730, UL61730; ISO9001:2015, ISO14001:2015, ISO45001:2018
- Packaging
- 27 pcs/pallet, 54 pcs/stack, 540 pcs per 40' HQ container
