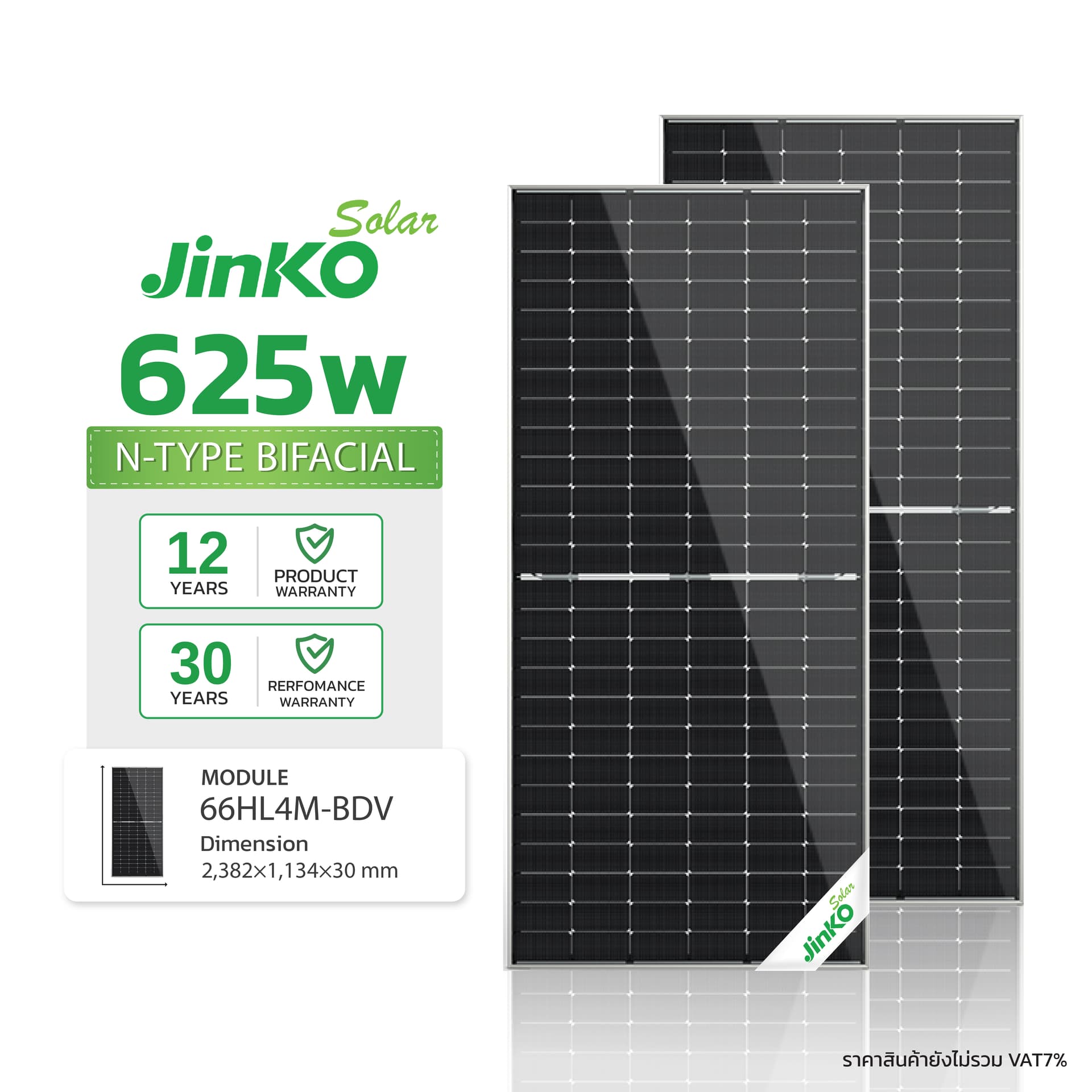

Jinko Solar Tiger Neo 625W N-type Bifacial Solar Module
₦150,000
In stock at Victoria Island, ready for pickup
The JKM625N-66HL4M-BDV is a 625 Wp bifacial dual-glass solar module from JinkoSolar's Tiger Neo N-type series, built with 132 (2x66) N-type mono-crystalline half-cells and SMBB technology. The glass-glass construction with an 80±5% bifacial factor allows extra energy yield from light reflected onto the rear side, making it suited to ground-mount, carport and commercial rooftop systems. It reaches 23.14% module efficiency at STC, carries a 1500 VDC system voltage rating and is certified for 2400 Pa wind and 5400 Pa snow loads.
- Maximum Power (Pmax) at STC:625 Wp
- Maximum Power at NOCT:472 Wp
- Maximum Power Voltage (Vmp):40.88 V
- Maximum Power Current (Imp):15.29 A
- Open-circuit Voltage (Voc):49.28 V
- Short-circuit Current (Isc):16.14 A
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (3872 KB).
Specifications
- Maximum Power (Pmax) at STC
- 625 Wp
- Maximum Power at NOCT
- 472 Wp
- Maximum Power Voltage (Vmp)
- 40.88 V
- Maximum Power Current (Imp)
- 15.29 A
- Open-circuit Voltage (Voc)
- 49.28 V
- Short-circuit Current (Isc)
- 16.14 A
- Module Efficiency at STC
- 23.14%
- Power Tolerance
- 0~+3%
- Cell Type
- N type Mono-crystalline, 132 (2x66) cells
- Dimensions
- 2382 x 1134 x 30 mm (93.78 x 44.65 x 1.18 inch)
- Weight
- 32.4 kg (71.43 lbs)
- Front / Back Glass
- 2.0 mm anti-reflection coated / 2.0 mm heat strengthened
- Frame
- Anodized aluminium alloy
- Junction Box
- IP68 rated
- Output Cables
- TUV 1 x 4.0 mm², (+): 400 mm, (-): 200 mm or customized length
- Maximum System Voltage
- 1500 VDC (IEC)
- Maximum Series Fuse Rating
- 35 A
- Operating Temperature
- -40°C ~ +85°C
- Temperature Coefficient of Pmax
- -0.29%/°C
- Temperature Coefficient of Voc
- -0.25%/°C
- Temperature Coefficient of Isc
- 0.045%/°C
- NOCT
- 45±2°C
- Bifacial Factor
- 80±5%
- Mechanical Load
- Wind 2400 Pa / Snow 5400 Pa
- Warranty
- 12 year product warranty, 30 year linear power warranty (0.40% annual degradation)
- Certifications
- IEC61215(2016), IEC61730(2016), CE; ISO9001:2015, ISO14001:2015, ISO45001:2018
- Packaging
- 36 pcs/pallet, 72 pcs/stack, 720 pcs per 40'HQ container
